How to use an XML configuration in a REST Connection Manager

How to use an XML configuration in a REST Connection Manager

Follow these steps to use the configuration

  1. Right Click Connection Managers.

  2. Choose New Connection.

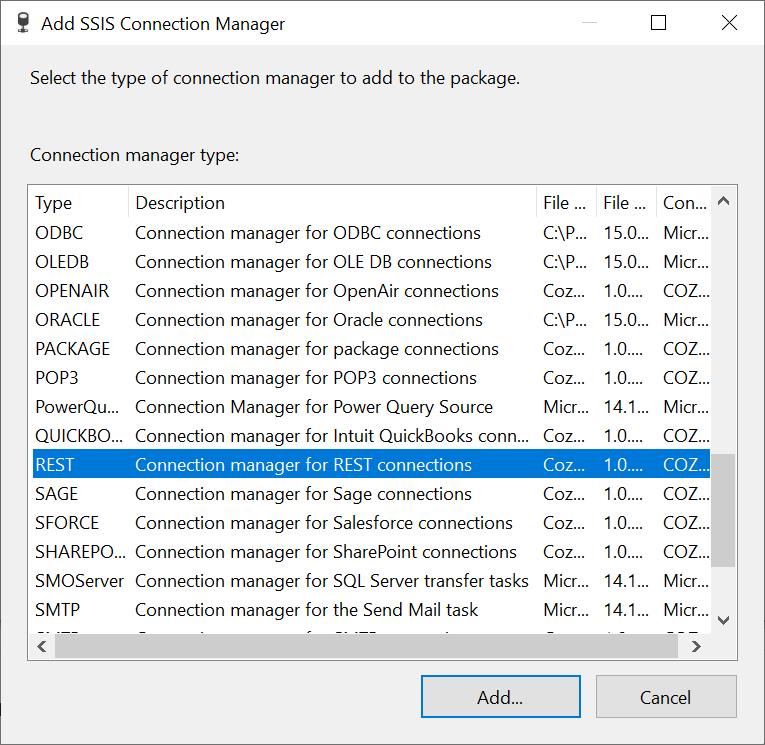

  3. Select Connection manager for REST connections.

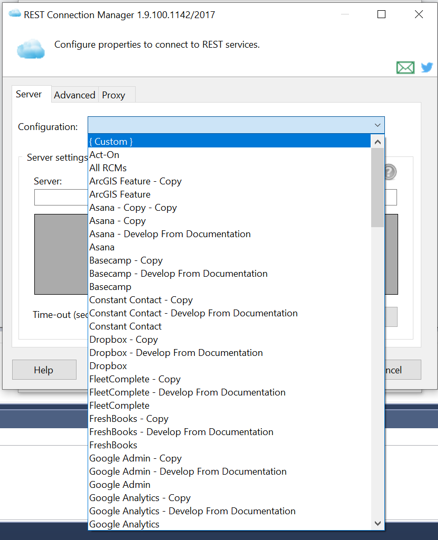

  4. In the Configuration drop down choose {Custom}.

  5. A wrench appears to the right of the Configuration drop down. Click on it.

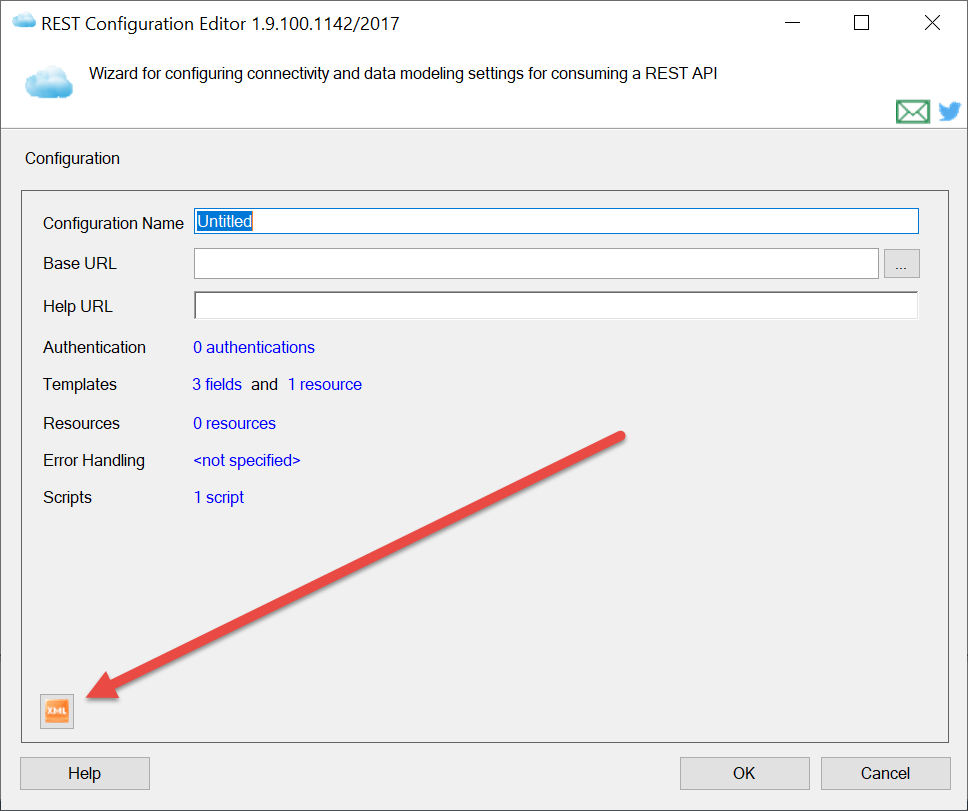

  6. The REST Configuration Editor dialog appears.  In the bottom left corner click on the XML button.

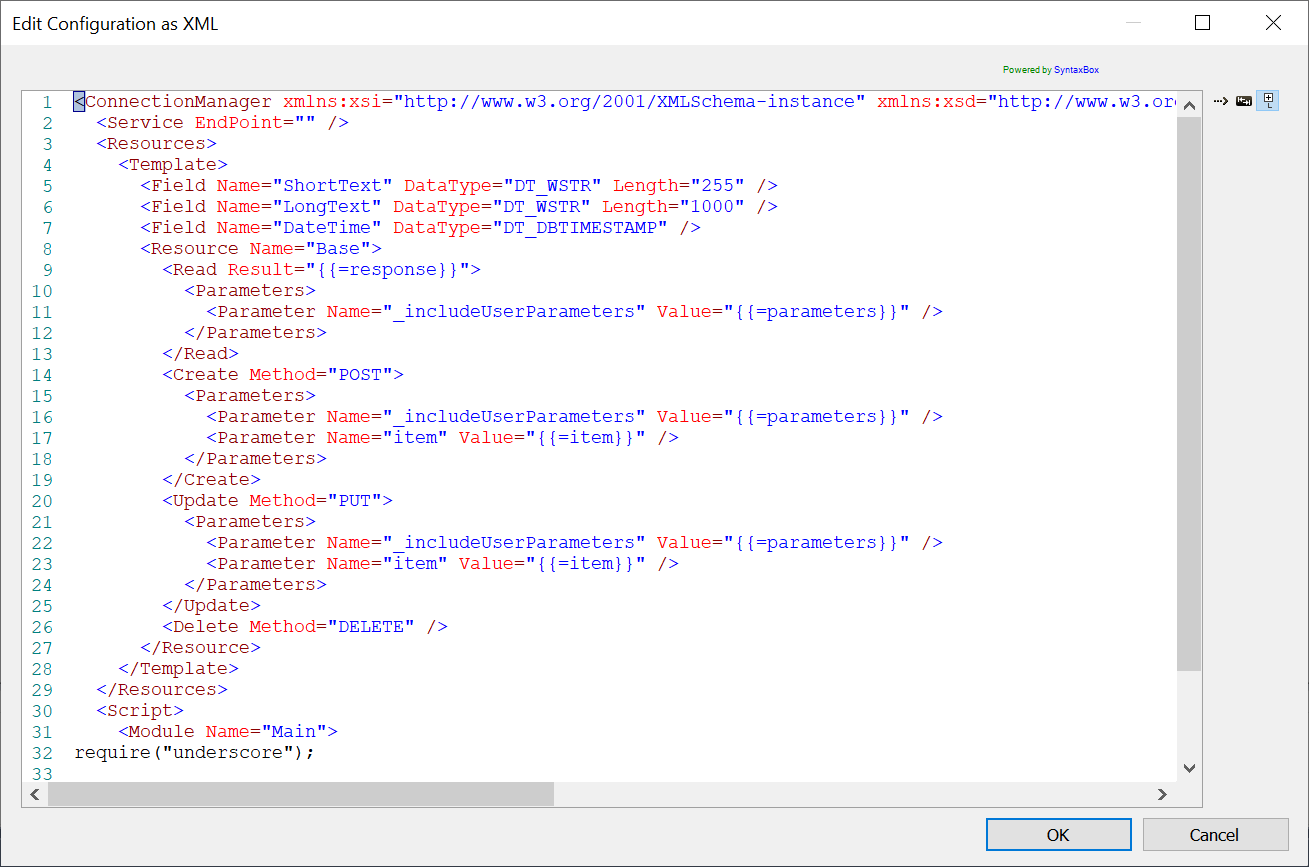

  7. The Edit Configuration as XML dialog appears.  Paste or edit the XML Configuration.

  8. From here you can also use the REST Configuration Editor wizard to modify the underlying XML Configuration you have just viewed.
